VGA to IP or H.264 VGA Video Encoder via HTTP RTSP RTMP UDP ONVIF to IPTV Stream
VGA to IP or H.264 VGA Video Encoder via HTTP RTSP RTMP UDP ONVIF to IPTV Stream

[Image: H.264_rearpanel.jpg]

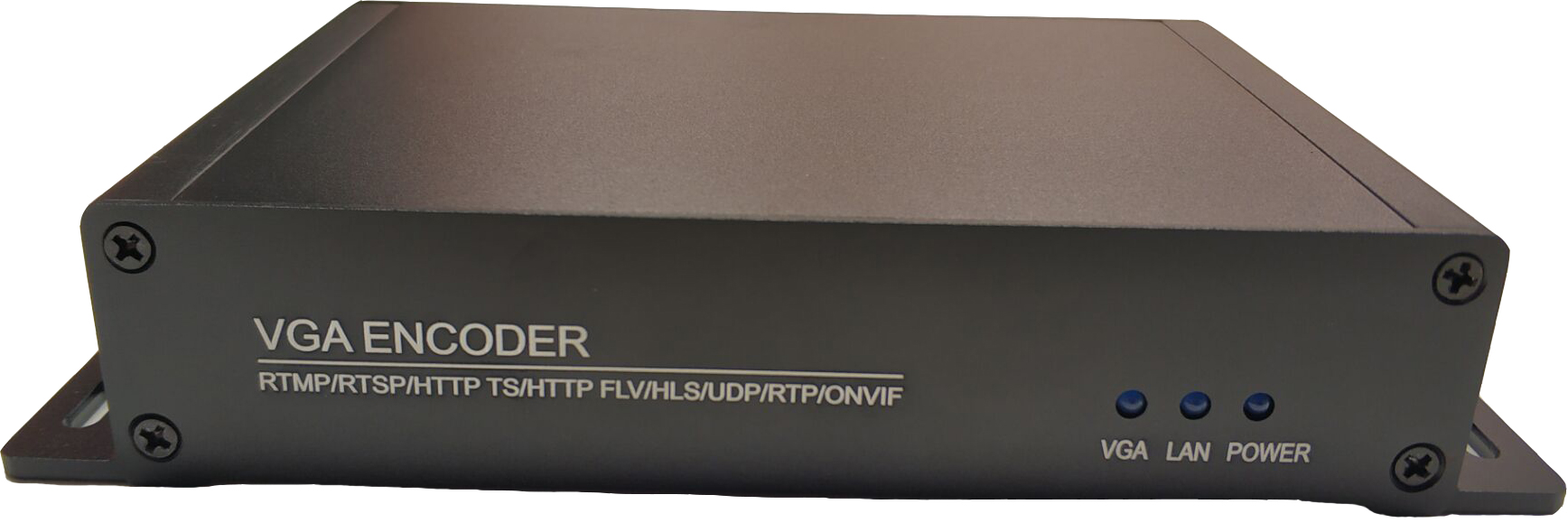

[Image: H.264_frontpanel.jpg]
[Image: H.264_size.jpg]

1. Embedded Linux System, stable and effective.
2. Friendly Web Control UI, default IP is, user name and password both are admin.
3. Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
4. Support multi-stream,one main stream and three sub-stream, up max to 4 stream at the same time.you can push multi-platform in the meantime.
5. Main Stream Support output resolution - 1920x1200, 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
6. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
7. Output Stream bitrate adjustable.
8. Support firmware upgrade.
9. IP address can be set by yourself.
10. Support remote control via router port forward.
11. VGA Loopout, no matter power on or power off.


You can play the video directly using some software tools like vlc or potplayer etc, for example,
5) rtsp://
6) rtmp://
7) udp://@
also,set the RTMP/RTMPS push address from the third live webcasting platform, such as Facebook, YouTube, Ustream, Twitter, Sopplus, etc.

Contact us:

About the details, please refer to the user manual:

About the newest upgrade firmware:

.zip   HI3520DV300_VGA.zip (Size: 6.51 MB / Downloads: 270)
